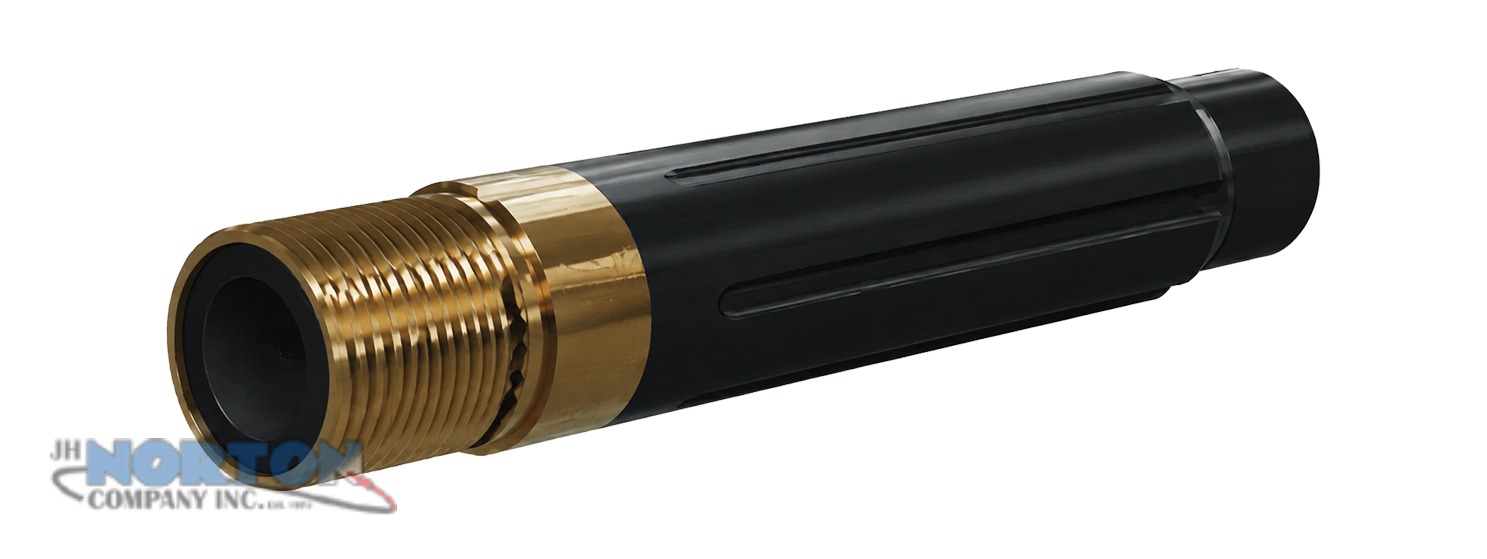

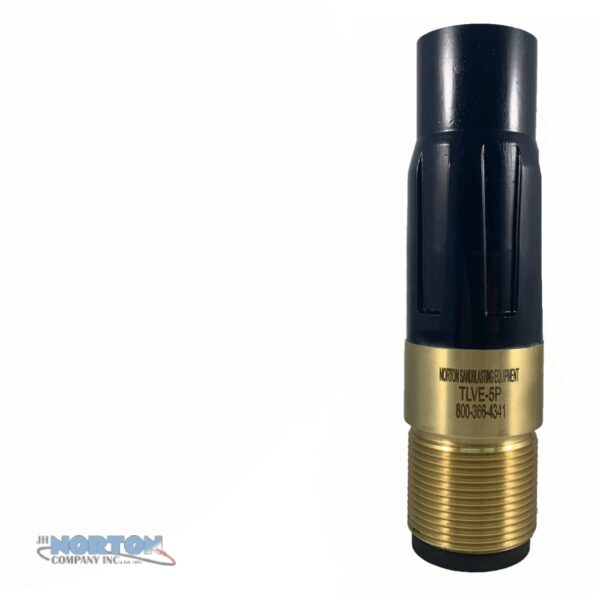

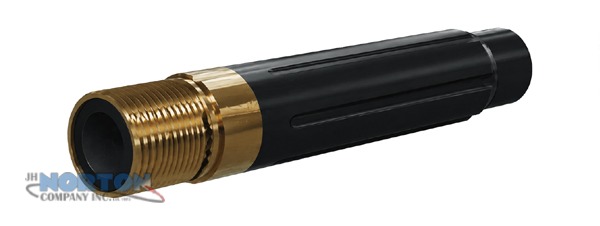

Blast Nozzle, #5 Tungsten Carbide Long Venturi, Poly Jacket, Brass Threads – TLVE-5P

Conventional Long Venturi Sandblasting Nozzle

#5  Blast Nozzle

Part Number:  TLVE-5P

  • Length: 5-7/8 inches
  • Bore Diameter: 5/16 inch
  • Entry: 1 inch
  • Poly Jacket
  • Brass Threads
  • Tungsten Carbide

Long Venturi style nozzles yield about a 40% greater production rate than straight bore nozzles. The internally tapered design of the venturi nozzle accelerates and evenly distributes the abrasive over the entire blast pattern.

These nozzles are designed for use with a 1″ I.D. blast hose for maximum cutting action on hard-to-clean surfaces.

Choosing The Right Nozzle Information
Blasting Chart /Nozzle Sizes/ How much air do I need?

(PDF Reference Document)

Norton Sandblasting Equipment is now JH Norton Company, Inc
“Where Service Makes the Difference”
Dedicated to meeting your blasting and surface preparation needs with quality equipment, parts and supplies since 1973

Online Price: $120.00
