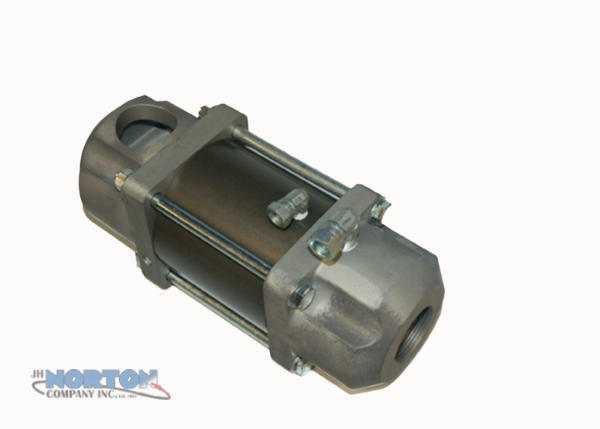

Combo Valve for Schmidt Portable Blasters, 1-1/4″ – 2223-000

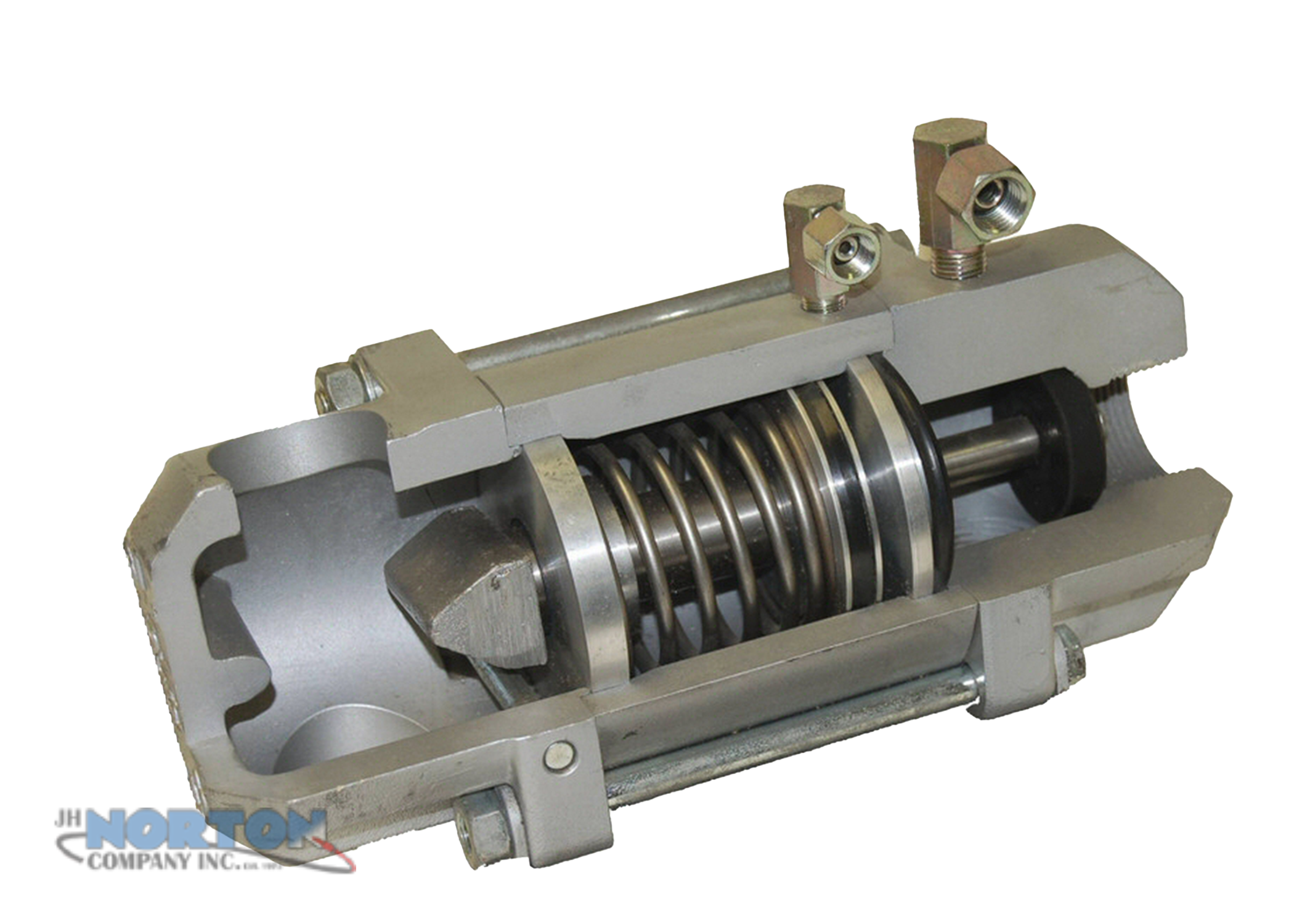

The ComboValve is a normally closed, self sealing, fail-safe valve that combines the functions of the air inlet valve and blowdown valve, eliminating premature failure of the blowdown system. It is controlled  with either pneumatic or electric remote controls. When the deadman control is pressed, the  ComboValve’s unitized piston assembly instantly shifts, opening the air inlet and pinching the blowdown  hose closed, starting the blasting operation. None of the usual wear or failures found in other blowdown  systems can occur with the ComboValve.
The ComboValve eliminates the need for abrasive traps, expensive plungers and diaphragms that can require frequent, unscheduled and costly downtime. The 3/4” 4-ply blowdown hose can be replaced in just a few minutes, and any service or repair can be safely performed without removing the complete valve. A large internal air passage minimizes pressure loss common to other system.

Part Number: SM2223-000

Click Here for the ComboValve Diagram

Click Here for More Information About Schmidt / Axxiom Valves and Controls
