Thompson Valve II XL (Extended Life) Tungsten Carbide 1-1/4″ – 2153-007

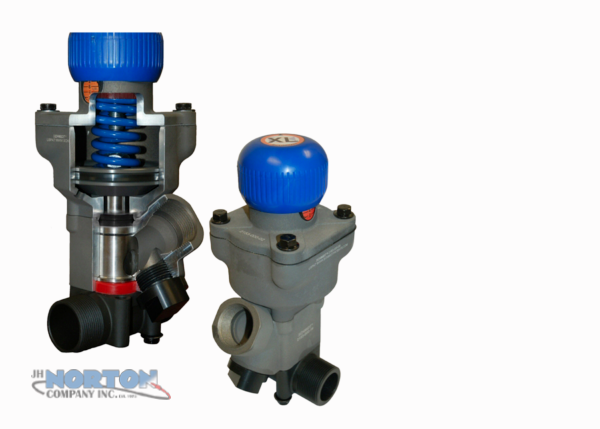

Schmidt Thompson Valve II XL (Extended Life)
1-1/4″ Tungsten Carbide

The newest advances in abrasive metering and control valve technology are incorporated in this valve. Shuts off abrasive flow to the nozzle and seals the tank in the same instant. Designed to address the unique challenges of the harshest blasting environments including those operating continuously with aluminum oxide.

Nothing comes close to matching the performance, reliability, serviceability and life of this valve. If minimizing downtime and keeping your operation up and running are critical to you, you need this valve.

Crafted with top-grade materials, this valve ensures unrivaled longevity even in the most demanding conditions, leading to significant cost savings through reduced maintenance expenses and downtime. Its robust construction provides resistance against corrosion, abrasion, and environmental factors, making it suitable for various indoor and outdoor applications.

User-friendliness is a priority in the design of the Thompson Valve II Extended Life. Easy installation and operation, along with user-friendly interfaces, streamline processes and enhance productivity. The valve’s low maintenance requirements further contribute to its appeal, allowing operators to focus on maximizing efficiency.

Features
• Improved Virtual Position Indicator (VPI) gives operators a 1:1 size relation to valve orifice.
• Control system signal ports relocated for easier access when valve is in place.
• Heavy duty castings with extra material in high wear areas.
• Redesigned piston is recessed for added spring stability, keeping valve actuation quick and smooth.
• New clean-out plug design has straight threads and face seal for an airtight seal, no Teflon necessary.
• Two improved seals, down from three, to reduce friction.
• Advanced sleeve design with internal wiper to prevent dust migration and mechanical binds; unique geometry allows easy removal.

Norton Sandblasting Equipment is now JH Norton Company, Inc
Dedicated to meeting your blasting and surface preparation needs with quality equipment, parts and supplies since 1973

Online Price: $1,917.00

The newest advances in abrasive metering and control valve technology are incorporated in this valve. Shuts off abrasive flow to the nozzle and seals the tank in the same instant. Designed to address the unique challenges of the harshest blasting environments including those operating continuously with aluminum oxide.

Nothing comes close to matching the performance, reliability, serviceability and life of this valve. If minimizing downtime and keeping your operation up and running are critical to you, you need this valve.

Product
Part Number
Size
Thompson Valve II XL, Tungsten Carbide
SM2153-008
1-1/2”
Thompson Valve II XL, Tungsten Carbide
SM2153-007
1-1/4”

More Information About Schmidt Valves and Controls

View/Download the PDF Brochure for Schmidt Extended Life Valves
